Dell Precision 5560 With Ci7-11750H and RTX A2000

Dell Precision 5560 With Ci7-11750H and RTX A2000 Review

The Dell Precision 5560 is a powerful, lightweight 15.6-inch mobile workstation built for creative professionals, engineers, and developers who need top-tier performance in a slim, elegant chassis.

Key Specifications
• Processor (CPU): Up to 11th Gen Intel Core i9 or Xeon W-11955M (8 cores, 16 threads)
• Graphics (GPU): NVIDIA RTX A2000 or Quadro T1200 (professional workstation GPUs)
• Memory: Up to 64GB DDR4 RAM
• Storage: Up to 4TB PCIe Gen4 NVMe SSD
• Operating System: Windows 11 Pro or Ubuntu (configurable)

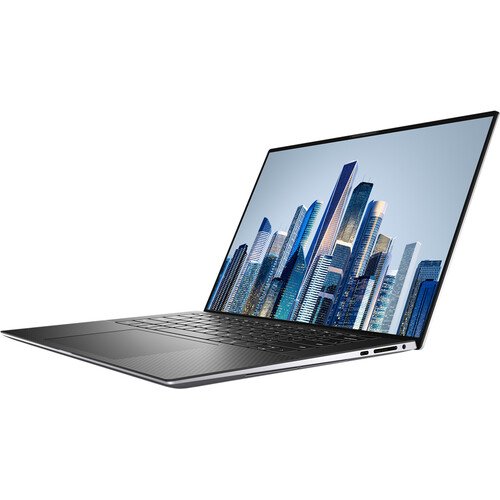

Display Quality
• Display Options:
• 15.6″ FHD+ (1920×1200) IPS, 100% sRGB
• 15.6″ UHD+ (3840×2400) OLED or IPS, 100% AdobeRGB, 99% DCI-P3
• Aspect Ratio: 16:10 for improved vertical screen space
• Brightness: Up to 500 nits

Verdict: Excellent display choices, especially the UHD+ for creative work like photo and video editing.

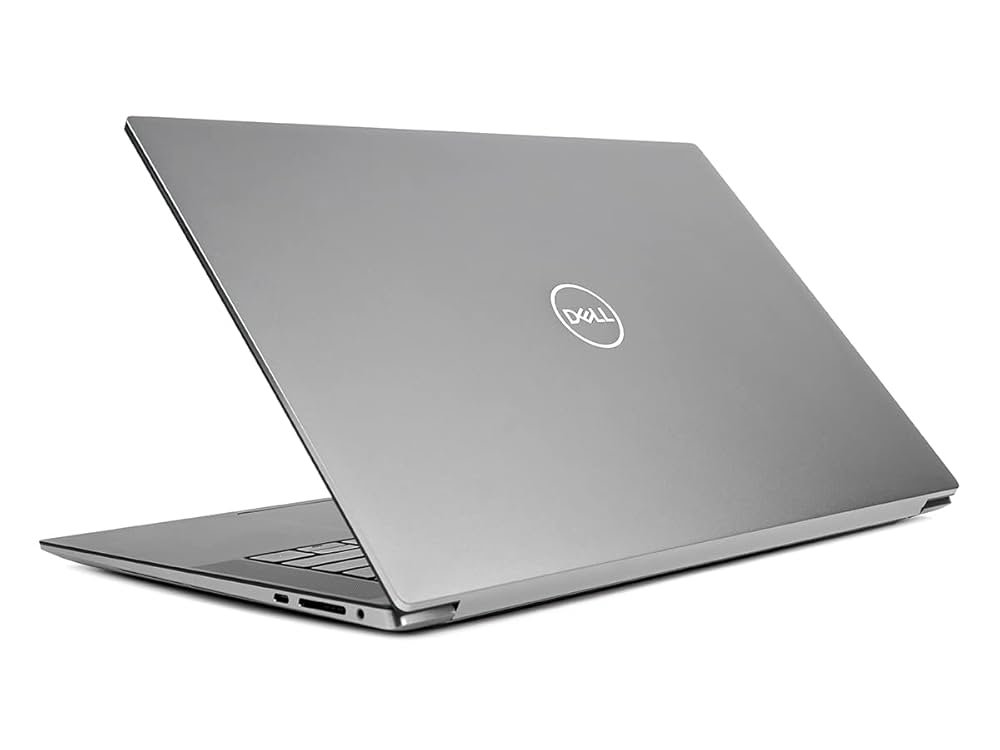

Design & Build
• CNC-machined aluminum chassis
• Slim bezels and modern XPS-style design
• Weighs approx. 1.85 kg (4.1 lbs)
• Just 18mm thin

Verdict: Sleek and professional with strong build quality, perfect for portability and on-site work.

 Thermals & Noise
• Dual fans and vapor chamber cooling
• GPU stays cool under load, but CPU can get very hot (up to 100°C) and throttle under long workloads
• Fans can get loud under load or while charging

User Tip: Consider using a cooling pad or adjusting fan curves for better thermal performance.

 Battery Life
• Battery options: 56Wh or 86Wh
• Up to 7–9 hours on light usage with FHD+ screen
• OLED version or heavy GPU usage drops it to ~2.5–4 hours
• Some users report battery drain issues due to the discrete GPU staying active

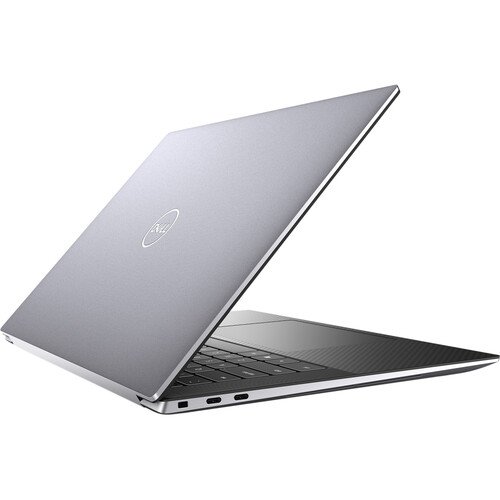

 Ports & Connectivity
• 2 x Thunderbolt 4 (USB-C)
• 1 x USB-C 3.2 Gen 2
• 1 x Full-size SD card reader
• 1 x 3.5mm audio jack
• USB-C to HDMI/USB-A adapter included
• Wi-Fi 6 & Bluetooth 5.2

Note: No built-in USB-A or HDMI ports—dongles may be needed for older peripherals.

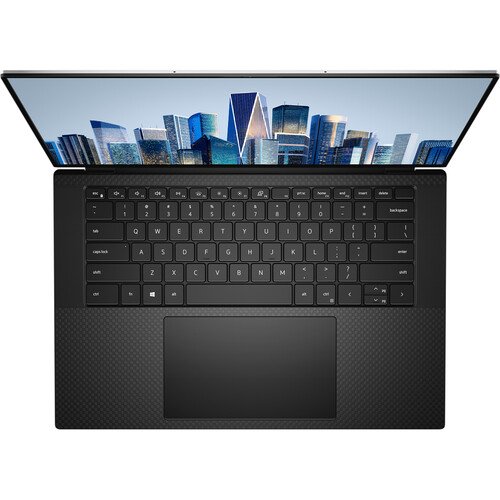

Webcam, Keyboard & Trackpad
• Webcam: 720p, average quality
• Keyboard: Comfortable with good travel
• Trackpad: Large and responsive, but some users report lag or palm rejection issues when on battery
• Biometric Login: Optional fingerprint reader

Final Verdict of Dell Precision 5560 With Ci7-11750H and RTX A2000

The Dell Precision 5560 is a premium mobile workstation that delivers top-tier performance in a compact, professional package. It’s ideal for content creators, engineers, designers, and power users who prioritize display quality, portability, and GPU acceleration.

However, users should be aware of potential thermal throttling, shorter battery life on high-end configurations, and limited legacy ports. If your workflow involves extended rendering or CPU-intensive tasks, you may want to consider improved cooling solutions or even a larger 7000-series Precision model.

Dell Precision 5560 vs 5570: Which Mobile Workstation Is Better?

Looking to choose between the Dell Precision 5560 and Dell Precision 5570?

✅ 1. Performance
• Precision 5560 features 11th Gen Intel Core i7 and Xeon processors.
• Precision 5570 upgrades to faster, more efficient 12th Gen Intel CPUs with hybrid architecture.
• Winner: Dell 5570 – Up to 80% faster in multi-core tasks.

⸻

✅ 2. Graphics
• 5560 includes NVIDIA Quadro T1200 or RTX A2000.
• 5570 offers newer RTX A1000 or A2000 with better GPU performance for CAD, 3D, and rendering.
• Winner: Dell 5570 – Improved graphics performance for creative professionals.

⸻

✅ 3. RAM & Storage
• 5560: Up to 64GB DDR4 RAM, single M.2 SSD slot.
• 5570: Up to 64GB DDR5 RAM, with dual M.2 SSD slots.
• Winner: Dell 5570 – Future-proof with faster memory and dual-drive support.

⸻

✅ 4. Display & Design
• Both offer 15.6″ FHD+ and UHD+ 16:10 displays with 100% sRGB or AdobeRGB.
• 5570 is slimmer, lighter, and features thinner bezels.
• Winner: Dell 5570 – More modern, portable design.

⸻

✅ 5. Battery Life & Thermals
• Similar battery life: ~6–9 hours depending on usage.
• Both can heat up under heavy load and require good ventilation.
• Winner: Tie – Both perform well with proper cooling.

⸻

✅ 6. Ports
• Both models include:
• 2x Thunderbolt 4 (USB-C)
• SD card reader
• Audio jack
• Neither has built-in USB-A or HDMI.
• Winner: Tie – Same port selection.
